製品概要
EKSPLA社製は、長年に渡りレーザ及びレーザに関する電気機器の製造・販売を行っており、常に最先端の製品を世に送り出しています。
特にハイパワーエレクトロニクス(高速／高電圧電源)は、EKSPLAが得意とするコア技術の一つです。
R&DからOEMまでと幅広い用途に対応するために、お客様のご要望に応じたカスタマイズも承っておりますので、お気軽にお問い合わせください。
製品ラインナップ
下記の出力タイプをクリックすると瞬時にその場所へ移動します。

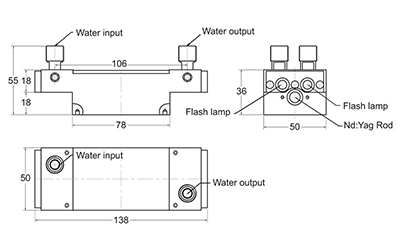

Pump Chambers(DFM)
Features
| Pump Chambers(DFM) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Two FL type flashlamp for active element pumping ・O-ring type seals for flashlamp and active element ・Close coupling design for high pumping efficiency ・Diffuse high efficiency ceramics reflectors ・Active element – flashlamp sequential cooling scheme ・Sm-glass plate for removal of UV radiation ・Connectors for high voltage wires included ・Connectors for water hoses ( 9 (ID) × 12(OD) ) included ・Typical efficiency (for 6 ns pulses at 1064 nm) approx. 1% |
 Download datasheet |
|

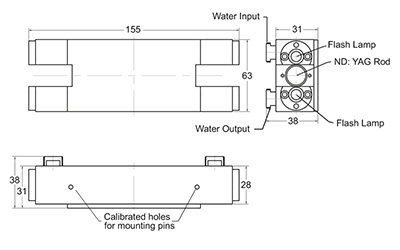

Pump Chambers(TM3)
Features
| Pump Chambers(TM3) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Two FL type flashlamps for active element pumping ・O-ring type seals for flashlamps and active element ・Close coupling design for high pumping efficiency ・Diffuse high efficiency ceramics reflectors ・Active element – flashlamp sequential cooling scheme ・Sm-glass plate for removal of UV radiation ・Connectors for high voltage wires included ・Connectors for water hoses ( 9 (ID) × 12(OD) ) included ・Typical efficiency (for 6 ns pulses at 1064 nm) approx. 0.7% |
| Download datasheet |
|

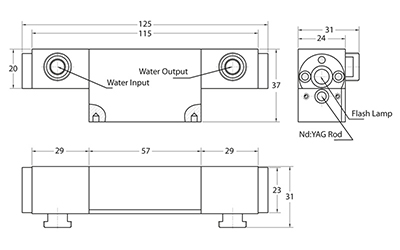

Pump Chambers(MA1)
Features
| Pump Chambers(MA1) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・One FL type flashlamp for active element pumping ・O-ring type seals for flashlamp and active element ・Close coupling design for high pumping efficiency ・Diffuse high efficiency ceramics reflectors ・Active element – flashlamp sequential cooling scheme ・Sm-glass plate for removal of UV radiation ・Connectors for high voltage wires included ・Connectors for water hoses ( 9 (ID) × 12(OD) ) included |
| Download datasheet |
|

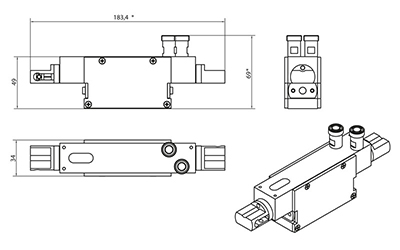

Pump Chambers(NL301)
Features
| Pump Chambers(NL301) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・One FL type flashlamp for active element pumping ・O-ring type seals for flashlamp and active element ・Close coupling design for high pumping efficiency ・Diffuse high efficiency ceramics reflectors ・Active element – flashlamp sequential cooling scheme ・Sm-glass plate for removal of UV radiation ・Connectors for high voltage wires included ・Connectors for water hoses ( 9 (ID) × 12(OD) ) included ・Typical efficiency (for 6 ns pulses at 1064 nm) approx. 1% |
| Download datasheet |
|
Pump Chambers(Nd:YAG Active Elements)
Features
| Pump Chambers(Nd:YAG Active Elements)) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・FL-58 type flashlamps (5×58mm) for active element pumping ・O-ring type seals for flashlamp and active element ・Close coupling design for high pumping efficiency ・Diffuse high efficiency ceramics reflectors ・Active element – flashlamp sequential cooling scheme ・Sm-glass filter for removal of UV radiation ・Connectors for high voltage wires included ・Connectors for water hoses (9 (ID)×12(OD)) included ・Typical stored energy is 1% of pump |
| Download datasheet |
|
Drawings & Images

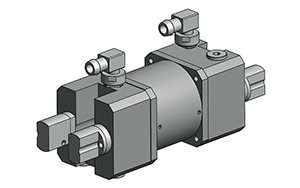

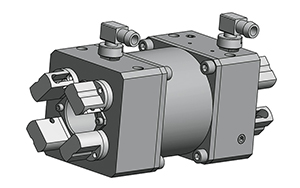

2MA12-58 / 2MA12-90 models pumpchambers has been designed for two
flashlamps

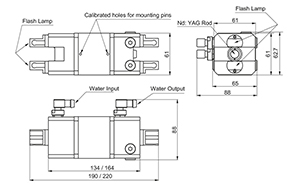

2MA12-58 / 2MA12-90 models pumpchambers drawing

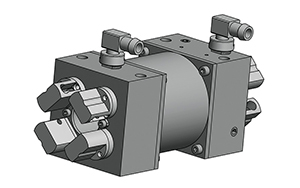

4MA18-58 / 4MA18-90 models pumpchambers has been designed for four
18.2 mm diameter flashlamps

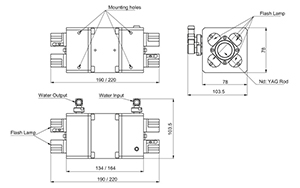

4MA18-58 / 4MA18-90 models pumpchambers drawing
4MA25-58 / 4MA25-90 models pumpchambers has been designed for four
25.2 mm diameter flashlamps

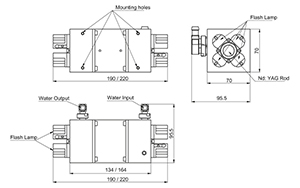

4MA25-58 / 4MA25-90 models pumpchambers drawing
Pump Chambers(High Energy Glass Amplifiers)
Features
| Pump Chambers(High Energy Glass Amplifiers) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Pump chambers for Nd:Glass rods ・Up to 10 flashlamps ・Up to 22000 J pumping energy |
| Download datasheet |
|
Pump Chambers(Mounting Stages)
Features
| Pump Chambers(Mounting Stages) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Suitable stages for pump chambers mounting ・For MA1-45, TM-2-75 and TM-3-75 chambers ・Inquire for different types of stages |
| Download datasheet |
|
Drawings & Images

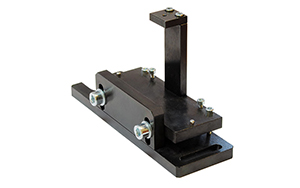

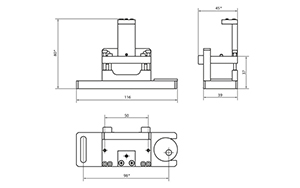

Mounting stage for pump chamber

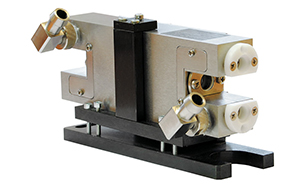

Mounting stage with mounted TM-2-75pump chamber
Mounting stage for MA1-45 pumpchamber
