製品概要
EKSPLA社製は、長年に渡りレーザ及びレーザに関する電気機器の製造・販売を行っており、常に最先端の製品を世に送り出しています。
特にハイパワーエレクトロニクス(高速／高電圧電源)は、EKSPLAが得意とするコア技術の一つです。
R&DからOEMまでと幅広い用途に対応するために、お客様のご要望に応じたカスタマイズも承っておりますので、お気軽にお問い合わせください。
製品ラインナップ
下記の出力タイプをクリックすると瞬時にその場所へ移動します。
Crystal Ovens(Temperature controller TK1 with nonlinear crystal oven KK1:TK1 with KK1 )
Features
| Crystal Ovens(Temperature controller TK1 with nonlinear crystal oven KK1:TK1 with KK1 ) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Consists of thermocontroller TK1 and crystal oven KK1 ・High temperature set (up to 200 °C) ・Accepts crystals up to 12×12×50 mm size |
 Download datasheet |
|
TK1 and KK1 is high temperature set (up to 200 °C)
consisting of thermocontroller TK1 and crystal oven KK1.
TK1 has two independent outputs and can control two KK1
ovens simultaneously. Trough RS232 computer interface it
can be controlled from PC. Current temperature is shown on LED display.
The nonlinear crystal is mounted into adapter before
insertion into oven KK1. Such design facilitates handling
and replacement of the crystal.
The non-linear crystal can be sealed with fused silica
windows in order to provide extra protection. The standard
adapters are 15, 30 and 50 mm length with apertures of
3×3, 4×4, 5×5, 6×6 mm size. Customized adapters for
crystals up to 12×12 mm size are available. In addition,
adapters for Brewster-cut and PPLN crystals are available
too.
Drawings & Images

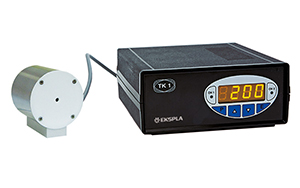

Temperature controller TK1 withnonlinear crystal oven KK1

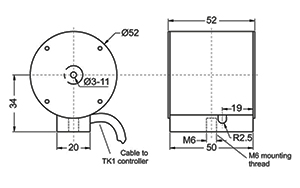

Drawings of nonlinear crystal oven KK1

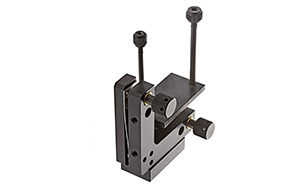

Adapter H4 for KK1 mounting on tiltstage
Crystal Ovens(Temperature Controller TK2 with Nonlinear Crystal Oven KK1:TK2 with KK1)
Features
| >Crystal Ovens(Temperature Controller TK2 with Nonlinear Crystal Oven KK1:TK2 with KK1) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Consists of thermocontroller TK2 and crystal oven KK1 ・High temperature set (up to 200 °C) ・Accepts crystals up to 12×12×50 mm size ・Available for ordering from May |
| Download datasheet |
|
TK2 and KK1 is high temperature set (up to 200 °C)
consisting of thermocontroller TK2 and crystal oven KK1.
TK2 has two independent outputs and can control two
KK1-30 ovens simultaneously. Controller is equipped by
LAN and USB computer control interfaces.
The nonlinear crystal is mounted into adapter before
insertion into oven KK1. Such design facilitates handling
and replacement of the crystal.
The non-linear crystal can be sealed with fused silica
windows in order to provide extra protection. The standard
adapters are 30 and 50 mm length with apertures of 3×3,
4×4, 5×5, 6×6 mm … 12×12 mm size. Oven is delivered
with one, customer’s specific size of adapter. Adapters for
different sizes can by ordered separately.
Separately you can purchase adapter for KK1 mounting on
tilt stage.
Drawings & Images

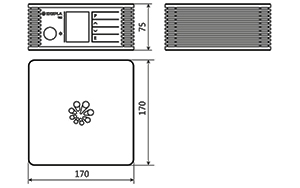

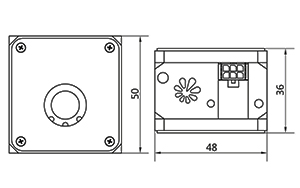

Temperature controller TK2 outlinedrawing

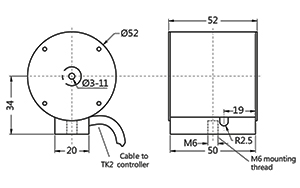

Oven KK1 outline drawing

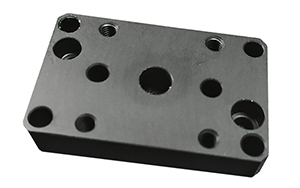

Adapter H1 for KK1 mounting on tiltstage
Crystal Ovens(Nonlinear Crystals Oven:TK3)
Features
| Crystal Ovens(Nonlinear Crystals Oven:TK3) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Compact oven with build-in thermocontroller ・Preset temperature 30 – 60 °C ・Temperature tuning range ±5 °C ・Accepts crystals up to 15×15×30 mm size |
| Download datasheet |
|
TK3 is compact oven with build-in thermocontroller for temperature up to 60 °C. It is ideal for larger aperture crystals like
KD*P. The crystals with up to 15 × 15 mm dimensions can be mounted. TK3L model can fit crystals with up to 30 mm length.
Each oven is made exactly for specified crystal, so it cannot be used for different size crystals.
Drawings & Images

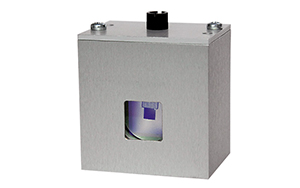

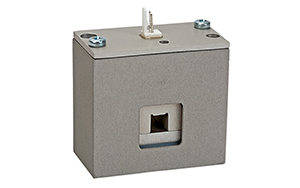

Nonlinear crystals oven TK3

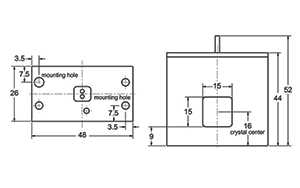

Nonlinear crystals oven TK3 drawing
Mounts for Crystals Ovens

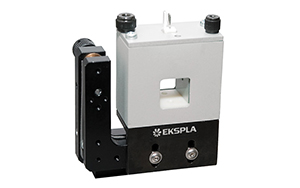

Mount H1 for fine tuning of TK3, TK4 orTK7 angle is available. The tuning range
is ± 2.5°

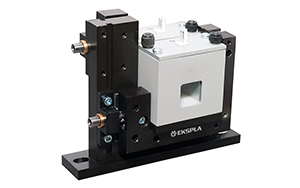

H2 type mount can fit two TK3, TK4 orTK7 type ovens and is ideal for holding
second and third or fourth harmonics
generators
Crystal Ovens(Nonlinear Crystals Oven:TK4)
Features
| Crystal Ovens(Nonlinear Crystals Oven:TK4) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Preset temperature 30 – 60 °C ・Temperature tuning range ±5 °C ・Accepts crystals up to 15×15×30 mm size |
| Download datasheet |
|
TK4 oven has identical mechanical design as TK3. The pre-set temperature can be adjusted in ±5°C range by the help of
potentiometer. The current temperature is not indicated. In addition, TK4 has “temperature ready” output signal, setting high
level when pre-set temperature is reached. TK4XL model can fit crystals with up to 50 mm length.
Drawings & Images
Nonlinear crystals oven TK4

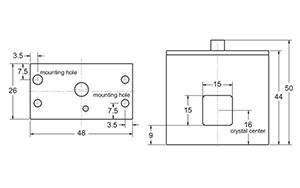

Nonlinear crystals oven TK4 drawings
Mounts for Crystals Ovens
Mount H1 for fine tuning of TK3, TK4 orTK7 angle is available. The tuning range
is ± 2.5°
H2 type mount can fit two TK3, TK4 orTK7 type ovens and is ideal for holding
second and third or fourth harmonics
generators
Crystal Ovens(Nonlinear Crystals Oven:TK7)
Features
| Crystal Ovens(Nonlinear Crystals Oven:TK7) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Temperature up to 60 °C ・Temperature tuning range ±5 °C ・Accepts crystals up to 12×12×30 mm size |
| Download datasheet |
|
TK7 is compact nonlinear crystals oven with build-in
thermocontroller for temperature up to 60 °C. TK7 oven
provides more crystal mounting options in comparison to
TK3 or TK4. Like in KK1, each crystal is mounted into
adapter before insertion in oven. TK7 and KK1 crystal
adapters are compatible. Maximum crystal size for this
model is 12×12 mm and the length of the crystal – 30 mm.
The pre-set temperature can be adjusted in ±5°C range
with the help of potentiometer. The current temperature is
not indicated. TK7 has “temperature ready” signal,
changing state when pre-set temperature is reached. For
additional protection of crystal surfaces from the dust or
other contamination, we offer TK7W model – windowed
version of TK7 oven.
Drawings & Images

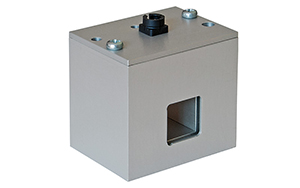

Nonlinear crystals oven TK7
Nonlinear crystals oven TK7 drawings
Mounts for Crystals Ovens
Mount H1 for fine tuning of TK3, TK4 orTK7 angle is available. The tuning range
is ± 2.5°
H2 type mount can fit two TK3, TK4 orTK7 type ovens and is ideal for holding
second and third or fourth harmonics
generators
Crystal Ovens(Nonlinear Crystals Oven:TK8)
Features
| Crystal Ovens(Nonlinear Crystals Oven:TK8) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Stabilized temperature in range 30 – 80 °C ・Temperature stability ±0.2 °C ・Accepts crystals up to 15×15×50 mm size ・Available for ordering from June |
| Download datasheet |
|
TK8 is compact oven with built-in thermocontroller for
nonlinears crystals to keep them at stabilized temperature
in range 30…80 °C. The crystals with aperture up to
15×15 mm and length up to 20 mm can be mounted. TK8L
and TK8XL ovens are designed for crystal length up to 30
mm and 50 mm accordingly. Each oven is made exactly for
specific crystal aperture size, so it cannot be used for
different size crystals.
Crystal oven can be used in two ways. First one is
autonomic operation. This case temperature is preset in
advance and stored in internal controller.
There is enough to connect DC power 12…24 V to keep
crystal at preset temperature. LED indicator on top of oven
shows that crystal temperature is reached preset value.
Temperature setting can factory preset or customer can set
it himself using CAN-USB converter (sold separately) and
CanBrowser software. Another way of operation gives
possibility change crystal temperature any time as needed
using CAN interface.
On request we can manufacture ovens for crystals with
aperture up to 60×60 mm or even larger.
Drawings & Images

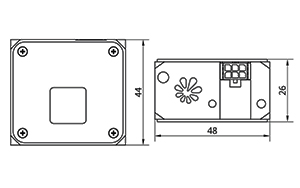

TK8 dimensions
Mount for fine tuning of TK8 crystalovens angle. The tuning range is ± 2.5°.

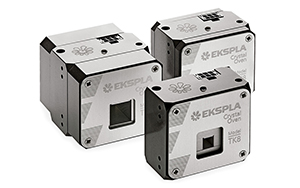

Full family of TK8 crystal ovens
Crystal Ovens(Nonlinear Crystals Oven:TK9)
Features
| Crystal Ovens(Nonlinear Crystals Oven:TK9) クリックするとメーカーホームページに移動します。 |
|
|---|---|
 |
・Stabilized temperature in range 30 – 80 °C ・Temperature stability ±0.2 °C ・Accepts crystals up to Ø12×30 mm size ・Available for ordering from June |
| Download datasheet |
|
TK9 is compact oven with built-in thermocontroller for
nonlinears crystals to keep them at stabilized temperature
in range 30…80 °C. The crystals with aperture up to
12×12 mm and length up to 15 mm can be mounted. TK9L
oven is designed for crystal length up to 30 mm. Crystal
oven is equipped with crystal adapters (holders), similar
design as KK1, that can be easy replaceable for different
crystal size. Crystal adapters can be ordered separately.
Crystal oven can be used in two ways. First one is
autonomic operation. This case temperature is preset in
advance and stored in internal controller.
There is enough to connect DC power 12…24 V to keep
crystal at preset temperature. LED indicator on top of oven
shows that crystal temperature is reached preset value.
Temperature setting can factory preset or customer can set
it himself using CAN-USB converter (sold separately) and
CanBrowser software.
Another way of operation gives possibility change crystal
temperature any time as needed using CAN interface.
Drawings & Images
TK9 dimensions
Mount for fine tuning of TK9 crystalovens angle. The tuning range is ± 2.5°.
